Introduction

Overview

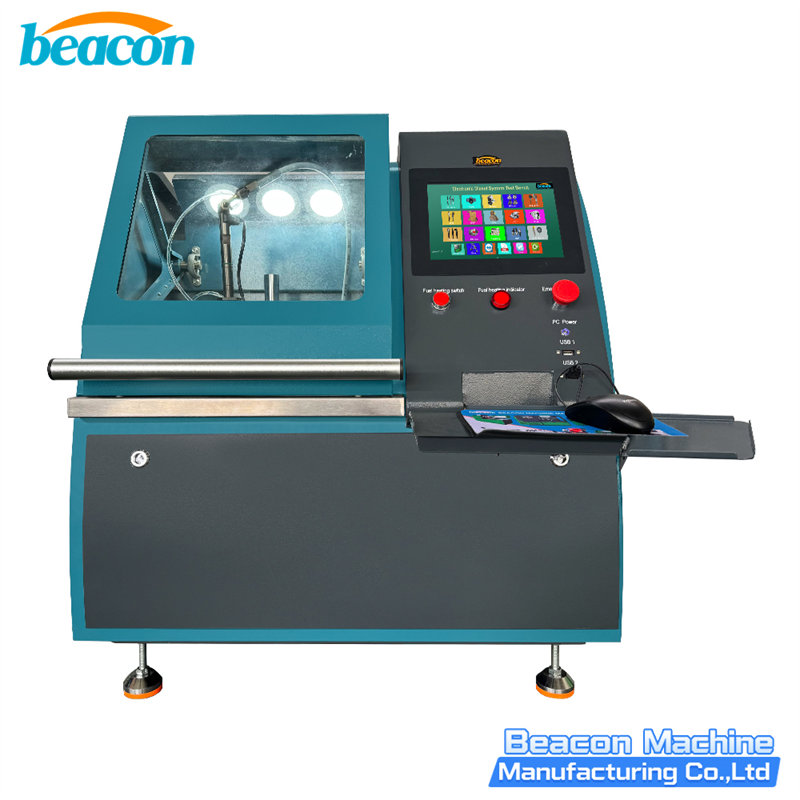

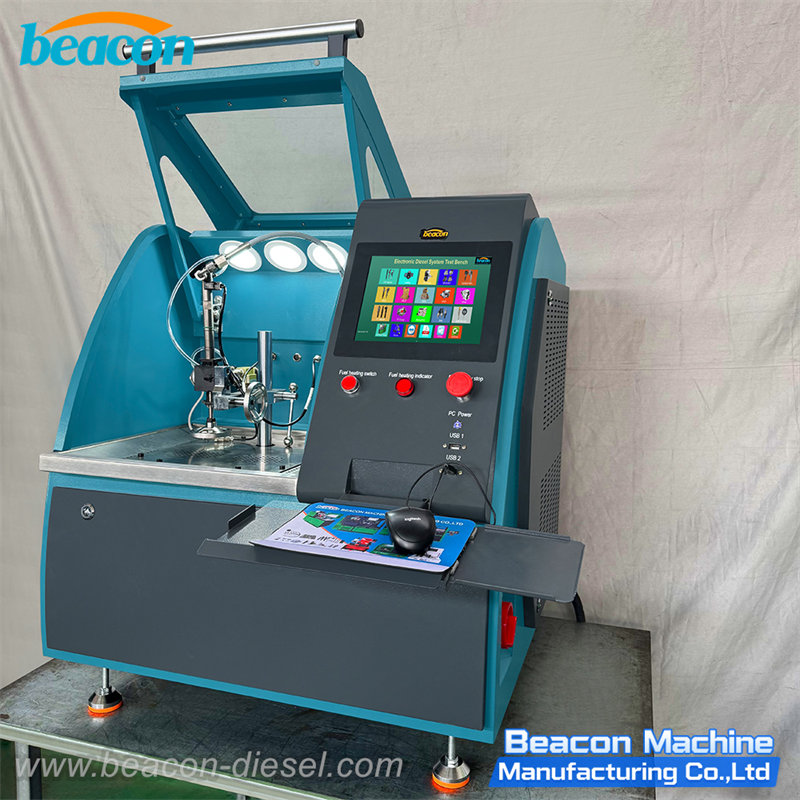

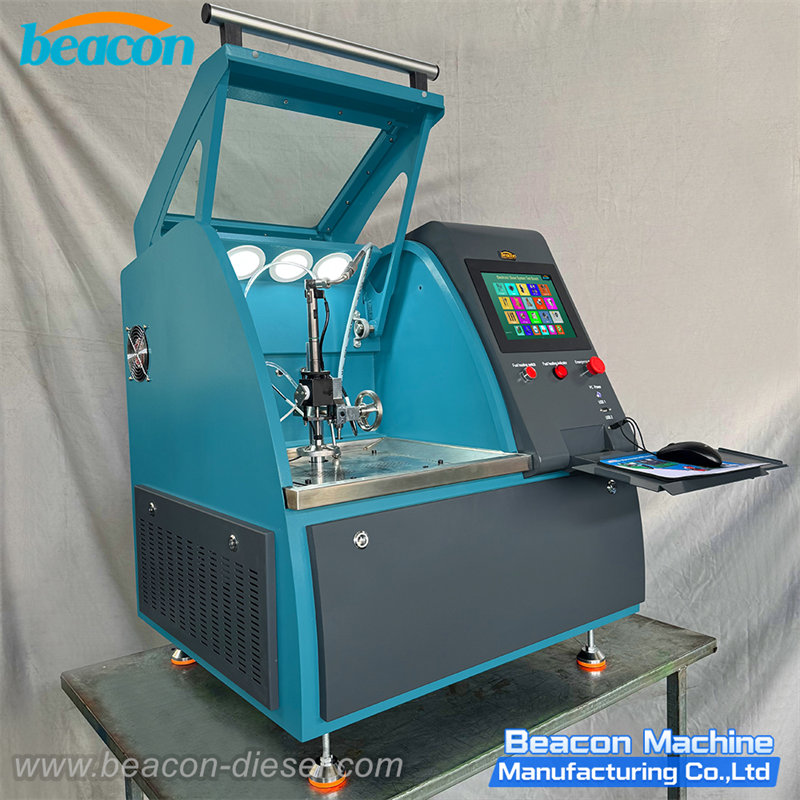

The Beacon EPS206-PRO is a state-of-the-art Common Rail Injector Test Bench designed for precision and efficiency in modern diesel repair shops. Compact yet powerful, this machine utilizes a 2.6KW (220V) system to perform comprehensive testing on solenoid and piezo injectors. It fully supports coding for major brands including Delphi, Bosch, Denso, and Siemens.

Intelligent Control System & Database

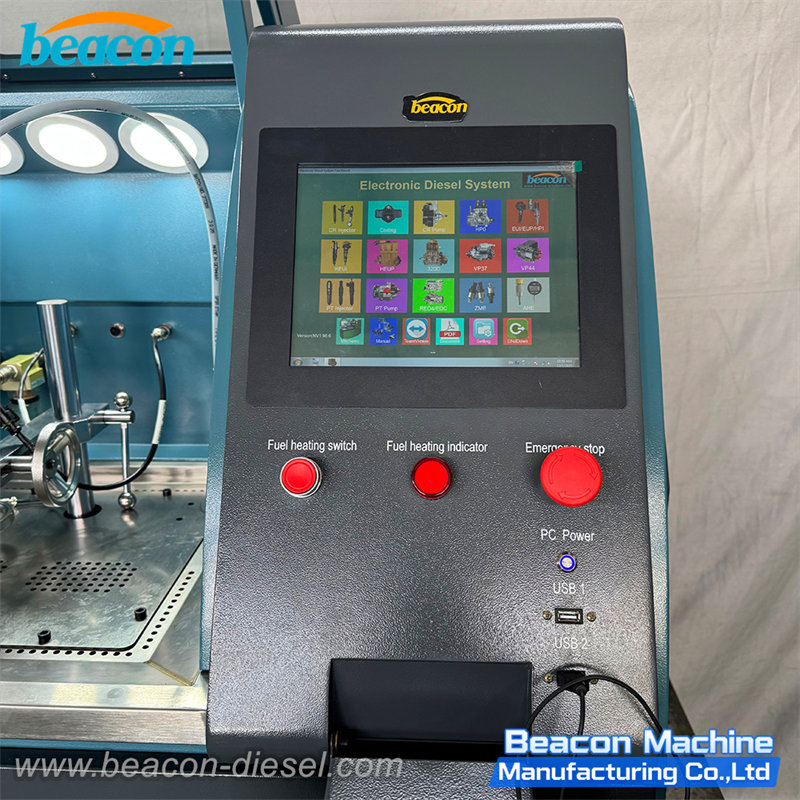

At the heart of the EPS206-PRO is an advanced electronic control system designed for accuracy. The system is pre-loaded with over 7,700 standard injector data profiles covering all major brands. This massive database provides complete and up-to-date test plans, ensuring that every injector—whether Common Rail or Piezo—is calibrated to factory standards. The user-friendly interface allows for quick selection and automatic testing.

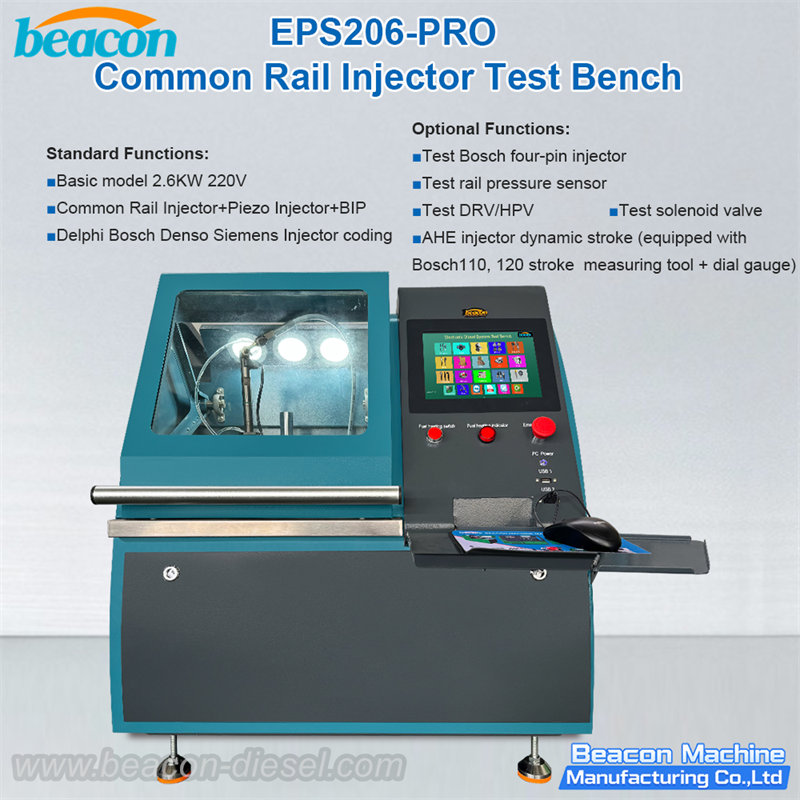

Key Features:

Standard Functions: Tests Common Rail and Piezo injectors, includes BIP function, and performs injector coding.
Precision Measurement: Uses a high-accuracy flow meter and a CP3H pump for stable pressure output (0-200MPa).
Expandability (Optional): Can be upgraded to test Bosch 4-pin injectors, rail pressure sensors, DRV/HPV, solenoid valves, and AHE dynamic stroke (Bosch 110/120).

parameter

Parameter	Specification
Model	EPS206-PRO
Power Supply	220V 1 Phase
Output Power	2.6 KW
Max Pressure	0 - 200 MPa
Motor Speed	0 - 3000 rpm
Measuring Method	High-precision Flow Meter
Pump Type	CP3H Common Rail Pump
Filtration	3μ Accuracy
Dimensions	80 x 75 x 90 cm
Net Weight	140 kg
